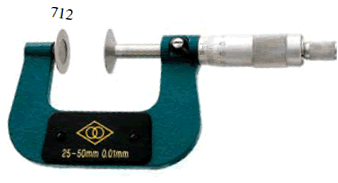

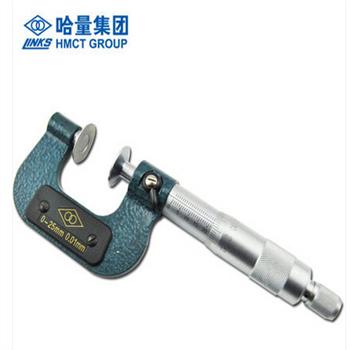

公法线千分尺用于测量齿轮公法线长度，是一种通用的齿轮测量工具。符合GB标准。
|
编 号
|
测量范围
|
读数值
|
质 量(kg)
|

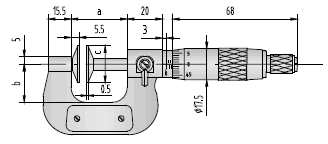

a
|
b
|
c
|
|
712-01
|
0-25mm
|
0.01mm
|
0.274
|
37.5mm
|
25.0mm
|
φ20
|
|
-2
|
25-50mm
|
0.356
|
62.5mm
|
35.0mm
|
φ25
|
|
-3
|
50-75mm
|
0.454
|
87.5mm
|
47.5mm
|
φ25
|
|
-4
|
75-100mm
|
0.6
|
112.5mm
|
60.0mm
|
φ25
|
|
-5
|
100-125mm
|
0.772
|
137.5mm
|
72.5mm
|
φ25
|
|
-6
|
125-150mm
|
0.961
|
162.5mm
|
85.0mm
|
φ25
|
|
-7
|
150-175mm
|
1.35
|
196mm
|
107mm
|
|
|
-8
|
175-200mm
|
1.62
|
221mm
|
119mm
|
|
|
-9
|
200-225mm
|
1.84
|
246mm
|
132mm
|
|
|
-10
|
225-250mm
|
2.03
|
271mm
|
144mm
|
|
|
-11
|
250-275mm
|
2.3
|
296mm
|
157mm
|
|
|
-12
|
275-300mm
|
2.68
|
321mm
|
169mm
|
|
